Introduction
Pipeline flanges are essential components used to connect pipes, valves, and fittings in industrial pipeline systems. High-quality flanges ensure reliable sealing performance, easy installation, and safe operation under high pressure and temperature conditions.
Shaanxi Gold-Stone supplies a full range of carbon steel, stainless steel, and alloy steel flanges for oil and gas, petrochemical, LNG, power plant, and industrial pipeline applications. All flanges are manufactured according to international standards including ASME, ASTM, API, and ANSI.
Types of Pipeline Flanges

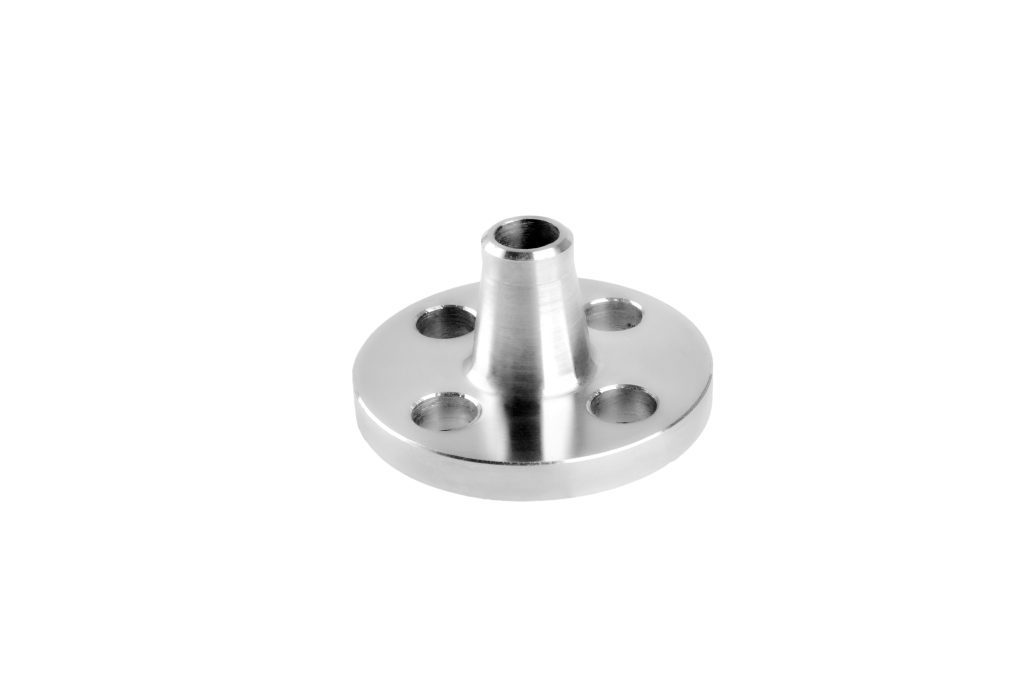

Weld Neck Flange
Weld neck flanges are designed for high-pressure and high-temperature applications. The long tapered hub provides excellent strength and reduces stress concentration.
Applications:
Oil and gas pipelines
High pressure systems
Refinery piping
Power plant pipelines
Slip On Flange
Slip on flanges are easy to install and commonly used in low to medium pressure pipelines. They are cost-effective and suitable for general industrial applications.
Applications:
Water pipelines
Low pressure systems
Industrial piping
Utility pipelines
Blind Flange
Blind flanges are used to close pipeline ends and pressure vessel openings. They provide reliable sealing and easy maintenance.
Applications:
Pipeline end closure
Pressure testing
Maintenance shutdown
Pipeline isolation
Socket Weld Flange
Socket weld flanges are suitable for small diameter high-pressure pipelines. They provide strong and leak-proof connections.
Applications:
High pressure pipelines
Small diameter piping
Chemical plants
Hydraulic systems
Threaded Flange
Threaded flanges are used in low-pressure systems where welding is not allowed. They are easy to install and remove.
Applications:
Low pressure pipelines
Utility systems
Water pipelines
Compressed air systems
Flange Standards
ASME B16.5
ASME B16.47
MSS SP-44
DIN standard
EN standard
Flange Materials
Carbon steel flanges
ASTM A105
ASTM A350 LF2
Stainless steel flanges
ASTM A182 F304
ASTM A182 F316
Alloy steel flanges
ASTM A182 F11
ASTM A182 F22
Flange Pressure Ratings
Class 150
Class 300
Class 600
Class 900
Class 1500
Class 2500
Industries We Serve
Oil & Gas pipeline
Petrochemical plants
LNG pipeline systems
Power plant piping
Water supply pipelines
Industrial piping systems
Why Choose Our Flanges
Complete flange types
Wide material range
Full size availability
Strict quality control
Third party inspection
Custom manufacturing
Fast delivery
Related Products
Pipe fittings
Steel pipes
Industrial valves
Stud bolts
Gaskets
Contact Us
Looking for pipeline flange manufacturer?
Contact Shaanxi Gold-Stone for quotation and technical support.
